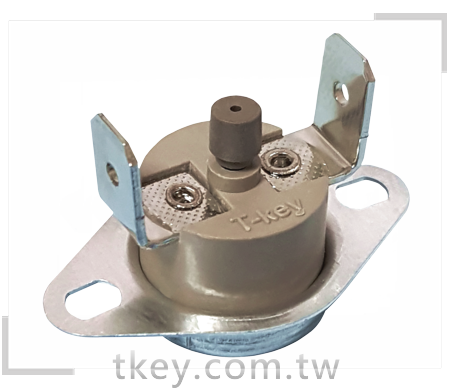

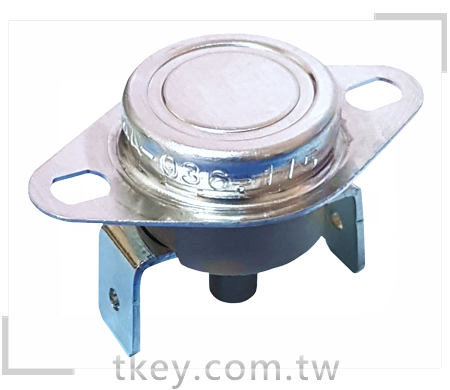

1C4A-036 Manual Reset Thermostat|Thermal Control Switch|Overheat Protector|Thermal cut-off
Base :
Thermoplastic
Reset :
Manual Reset
Contact :
Normally Close

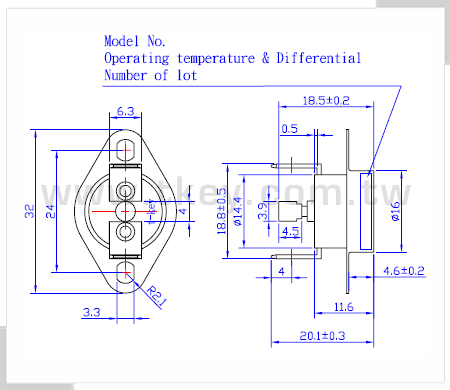

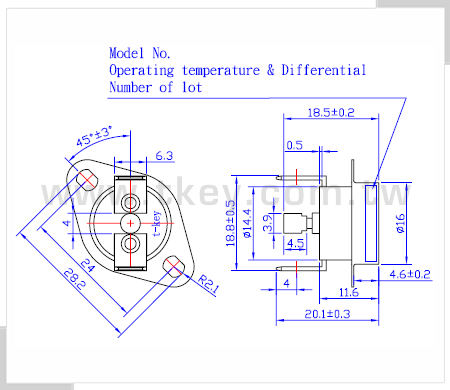

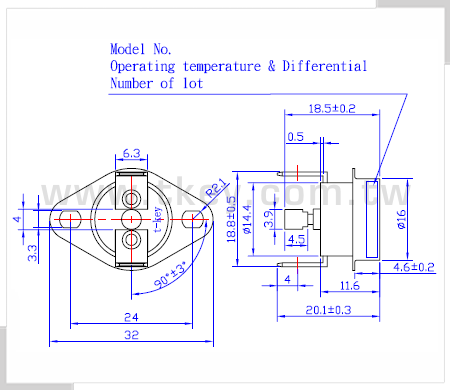

Mounting :
Top mounting integrated cup
Terminal :
6.3mm(0.8mm Thickness) 90° Quick connect
Temperature :
Maximum operating temperature 185 deg.C
Applications:
Espressor machines, Vending machines, Toaster, Photo copier, Roomheater, UPS, Microwave, and Other household appliances and heating appliances.

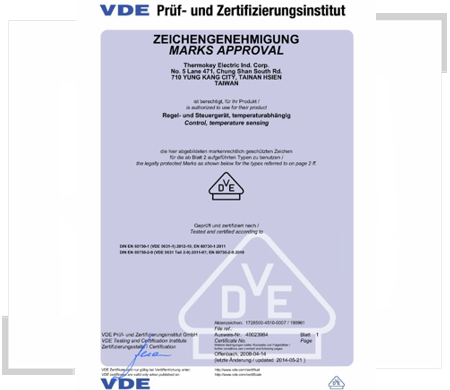

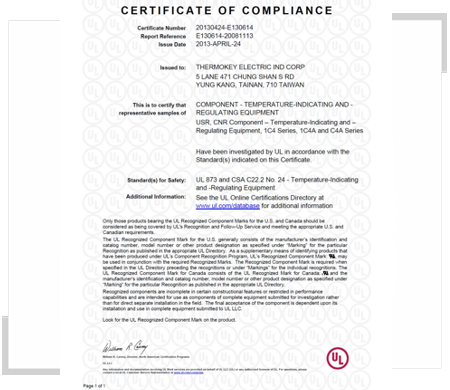

Approvals:
UL、CUL
TUV

Electrical Specification:
  • Electrical Ratings:
    C4/1C4 Series:AC 250V/10A , AC 125V/15A
        1C4A Series:
    AC 250V/10A , AC 125V/15A
  • Dielectric Strength:AC 1500V , 60 sec
  • Insulation Resistance:100 MΩ or more
  • Contact Resistance:50 mΩ or less
  • Life Cycles:
    C4/1C4 Series:Over 100,000 cycles under rated load
        1C4A Series:Over 6,000 cycles under rated load


Thermal Specification:
  • Ambient Temperature:C4 Series(250℃)
  • Actuating Temperature
        C4 Series (Maximum 210℃)
      1C4 Series (Maximum 185℃)
    1C4A Series (Maximum 185℃)
  • Tolerance:±3℃、±5
  • Differential:
    C4/1C4 Series:Normally 10℃ to 20℃ and other differentials can be specified


Other Features:
Compact dimension with high load capacity
High operating speed
Current insensitive
